VR has been around for some time now, with every few years seeing huge advancements in technology that finally give us a balance of performance and visual fidelity. Pimax has been working on changing the game for a while with their ‘Super’ series of headsets. Whilst many headsets prior have been able to provide good clarity, none have quite reached the peaks of what a more advanced display like OLED could achieve. This is something Pimax is looking to change with the new Crystal Super MicroOLED headset.
The Pimax Crystal Super MicroOLED does not claim to solve every problem VR has ever had, but it does feel like a meaningful shift in priorities. Pimax has focused on display quality, optical consistency, and modular design. This review focuses specifically on the Micro-OLED configuration, the most premium option in the Crystal Super lineup, and one that was demoed publicly at CES 2026.
We have already reviewed the Crystal Super platform and the Crystal Light previously, so this is not about first impressions, instead, this is a look at how the Micro-OLED panels, pancake optics, and eye-tracked rendering function in the new module.
These are my specs for this review:
- NVIDIA RTX 4090
- AMD Ryzen 9 7950X3D 16-Core Processor
- 64GB RAM
DLSS was used throughout, primarily in Balanced mode, with Frame Generation enabled. Native TAA rendering was tested briefly but ultimately abandoned. While TAA can look clean in 2D, DLSS offers a better balance of clarity and performance in VR once tuned correctly. Motion smoothing was enabled, and eye-tracking remained active at all times.
Before you read on, it’s important to make this clear: this headset is not for weak GPUs or those looking for a cheap VR headset. Pimax has designed this to take advantage of powerful GPUs (recommended only 4090 and 5090 cards), and the price of the headset is premium.
One of Pimax’s smartest decisions with the Crystal ecosystem is its modular optical design. Rather than locking users into a single display configuration, the headset allows different optical engines to be swapped in and out depending on preference.

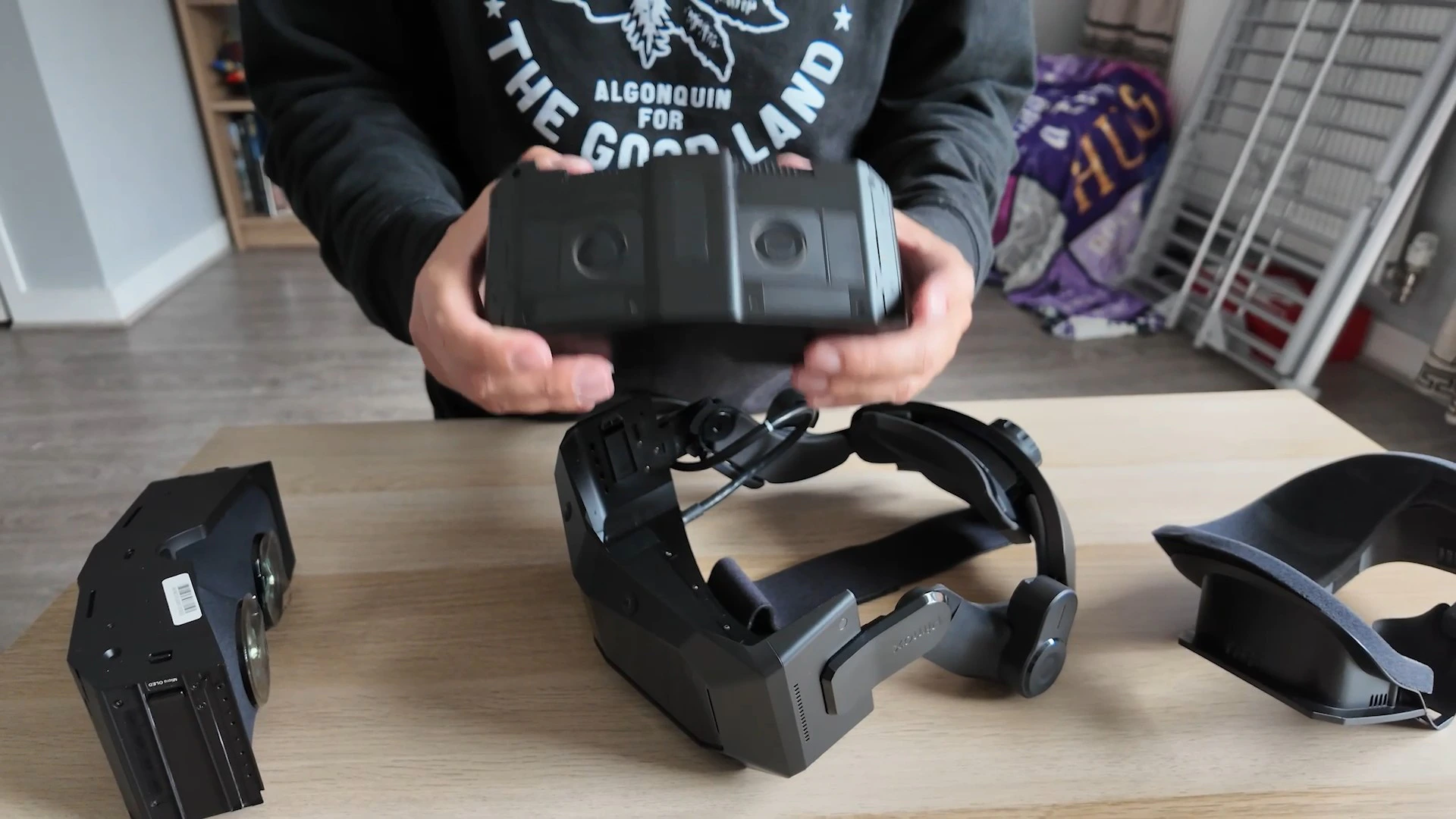

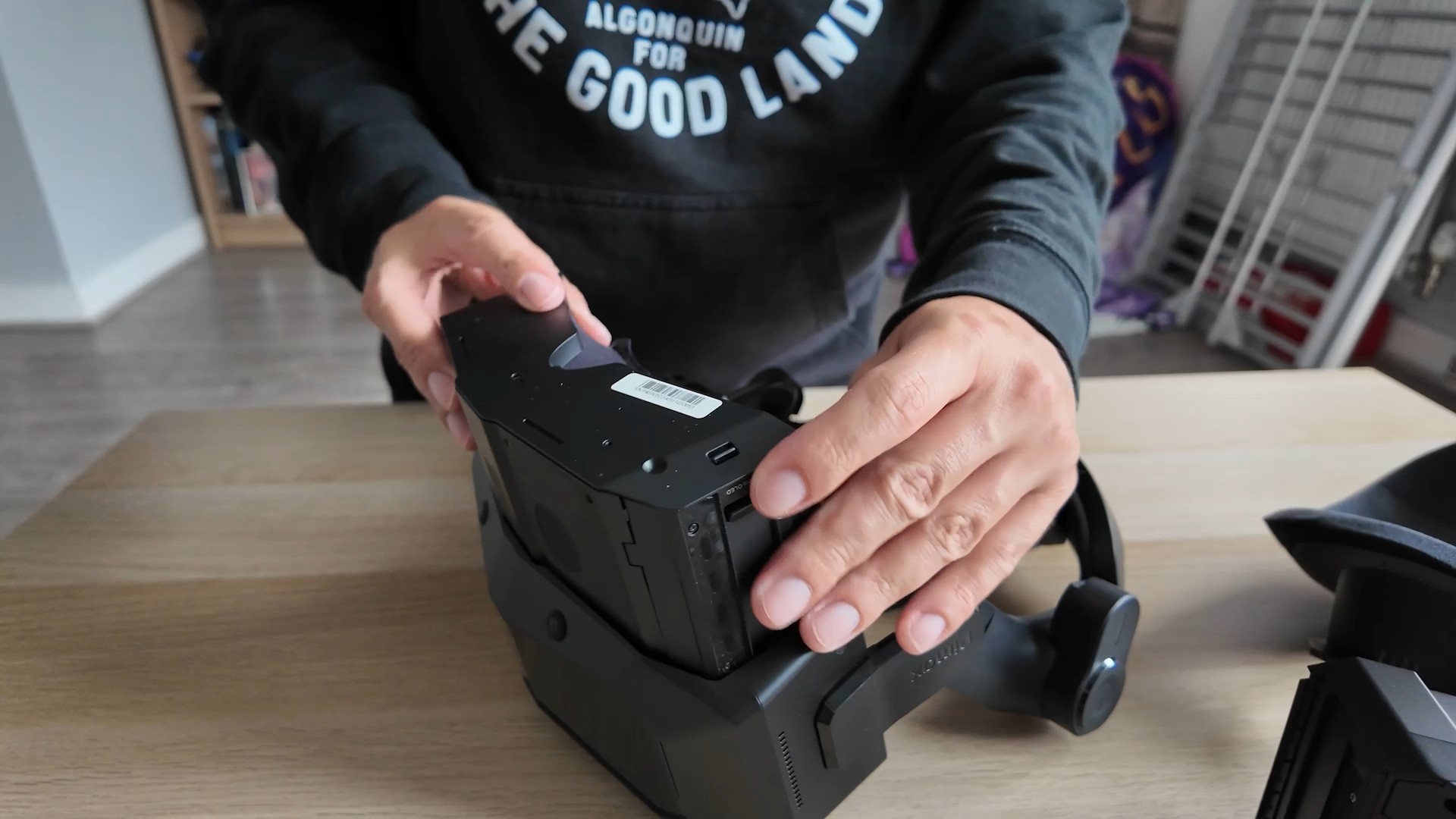

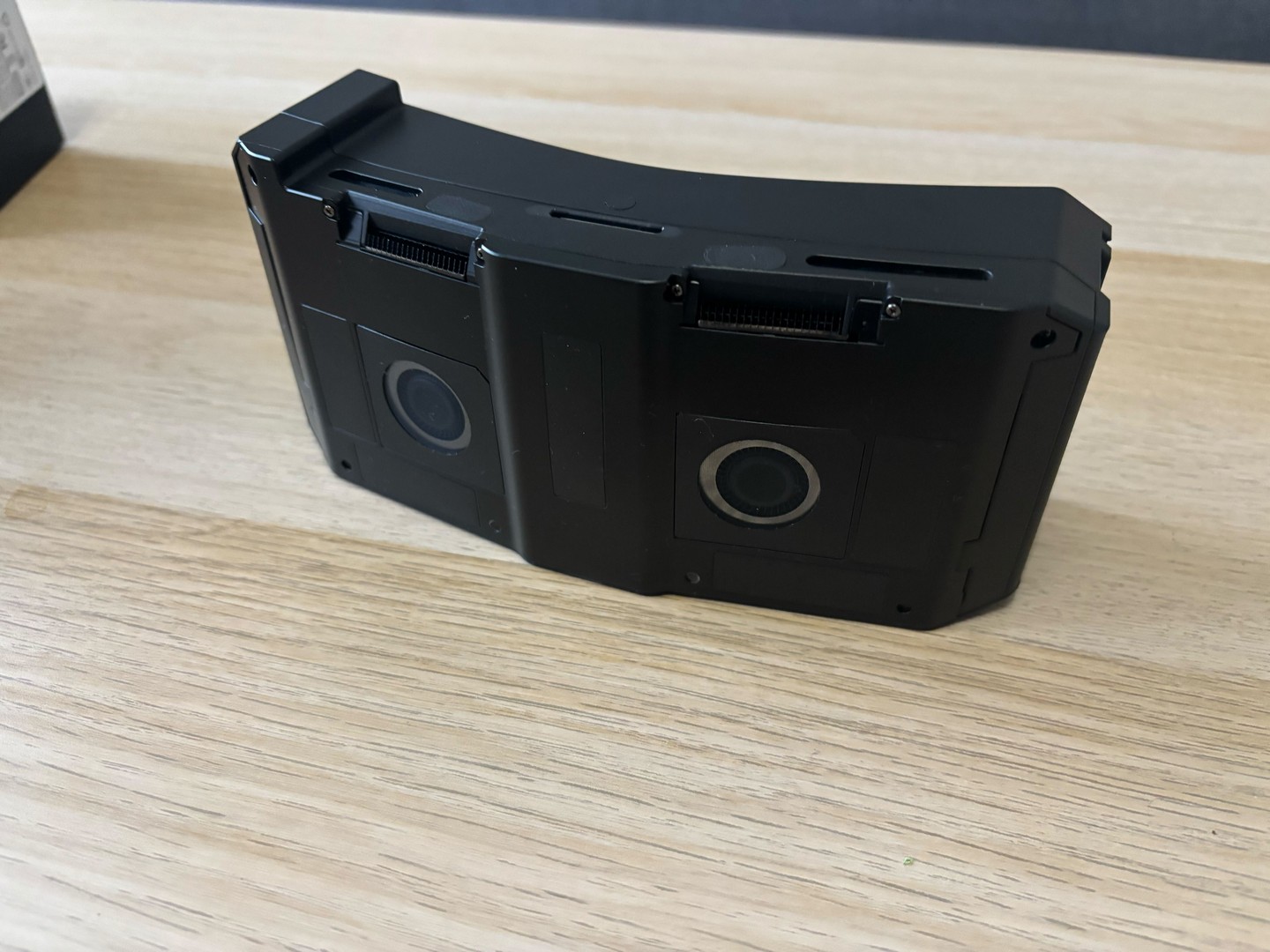

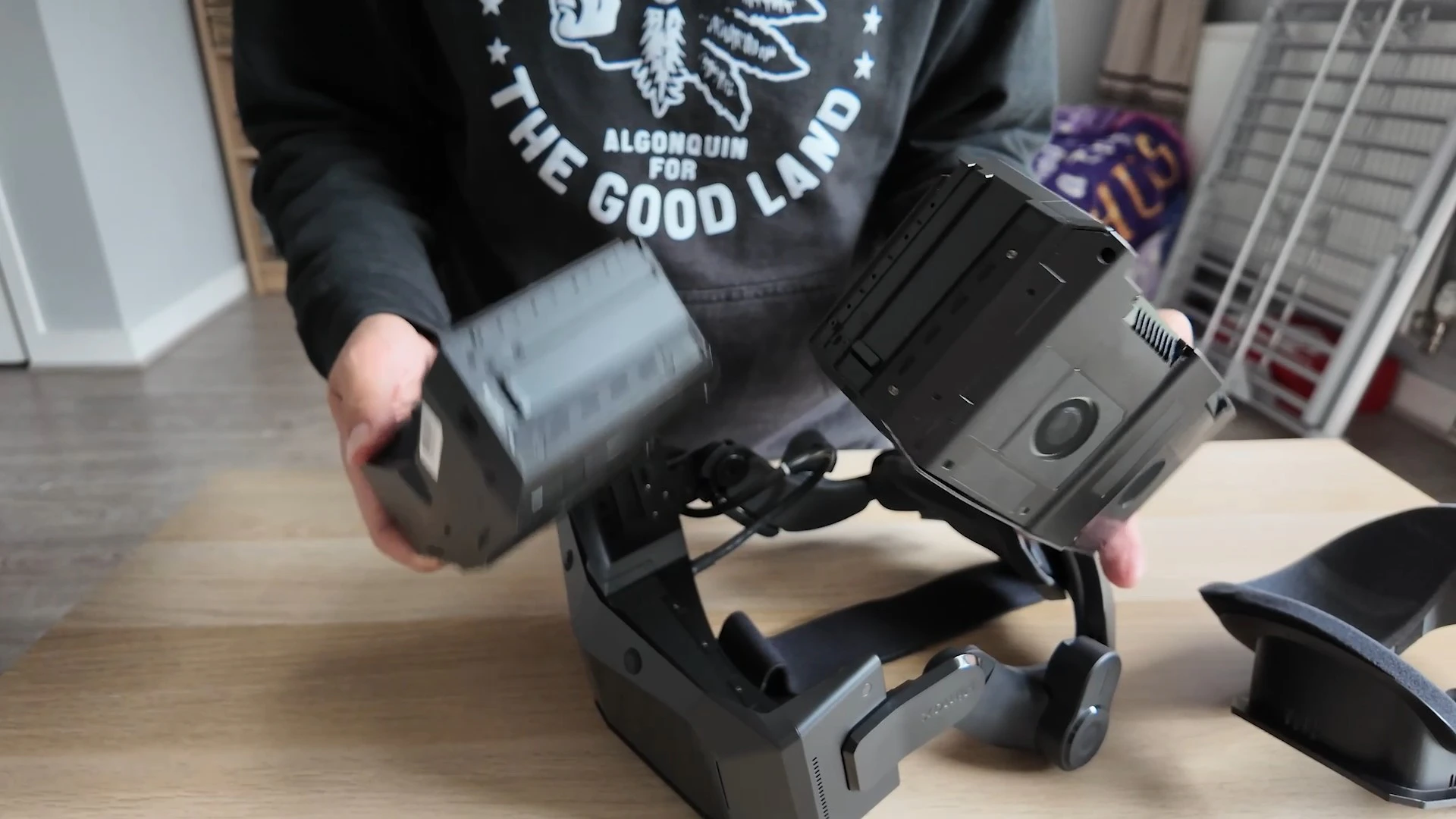

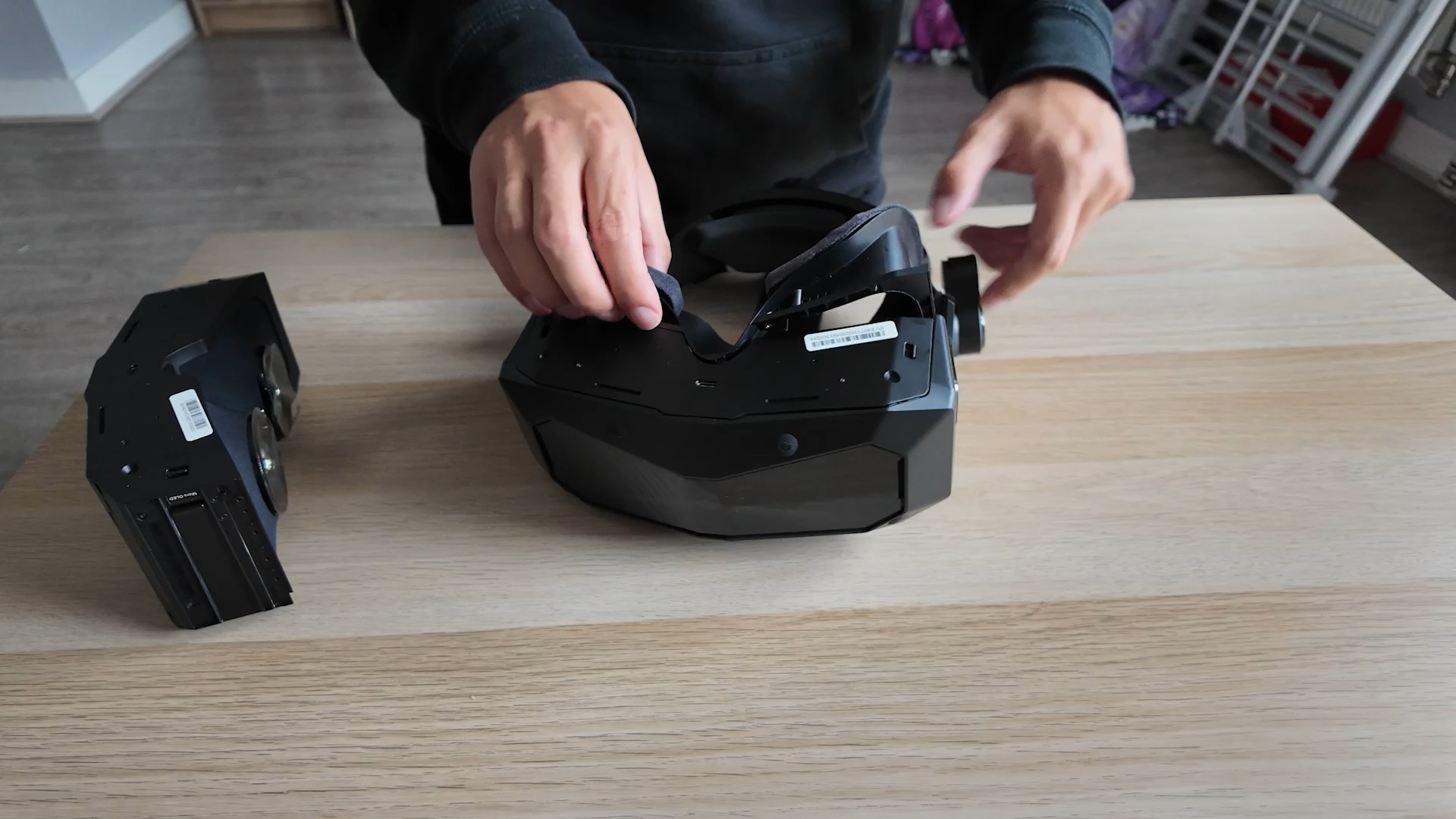

I tested the module-only version, which meant replacing an existing optical engine with the Micro-OLED unit. The process is pretty simple. The headset detaches from its holder, the old module slides out, the Micro-OLED module slides in, and the face gasket is reattached. The entire process took around three minutes, and clear instructions are readily available online, including our own video guides. Once installed, nothing else changes. The headset connects to the GPU as before, and setup continues through Pimax Play, which remains consistent across Crystal variants.
The New OLED Display Shines
At the core of the Crystal Super MicroOLED is its Sony Micro-OLED display, delivering 3840 × 3552 pixels per eye. Unlike LCD or QLED panels, Micro-OLED displays are self-emissive. Each pixel produces its own light, which allows for true blacks rather than approximations created by backlight dimming. In flight simulation, this has a surprisingly profound effect.
Where these backlit dimming zones matter is through contrast. In a cockpit environment filled with text, lines, and fine detail, higher contrast improves legibility massively. This is even more apparent when flying in cloudy, dreary days or when you get bright days and harsh shadows in your cockpit.

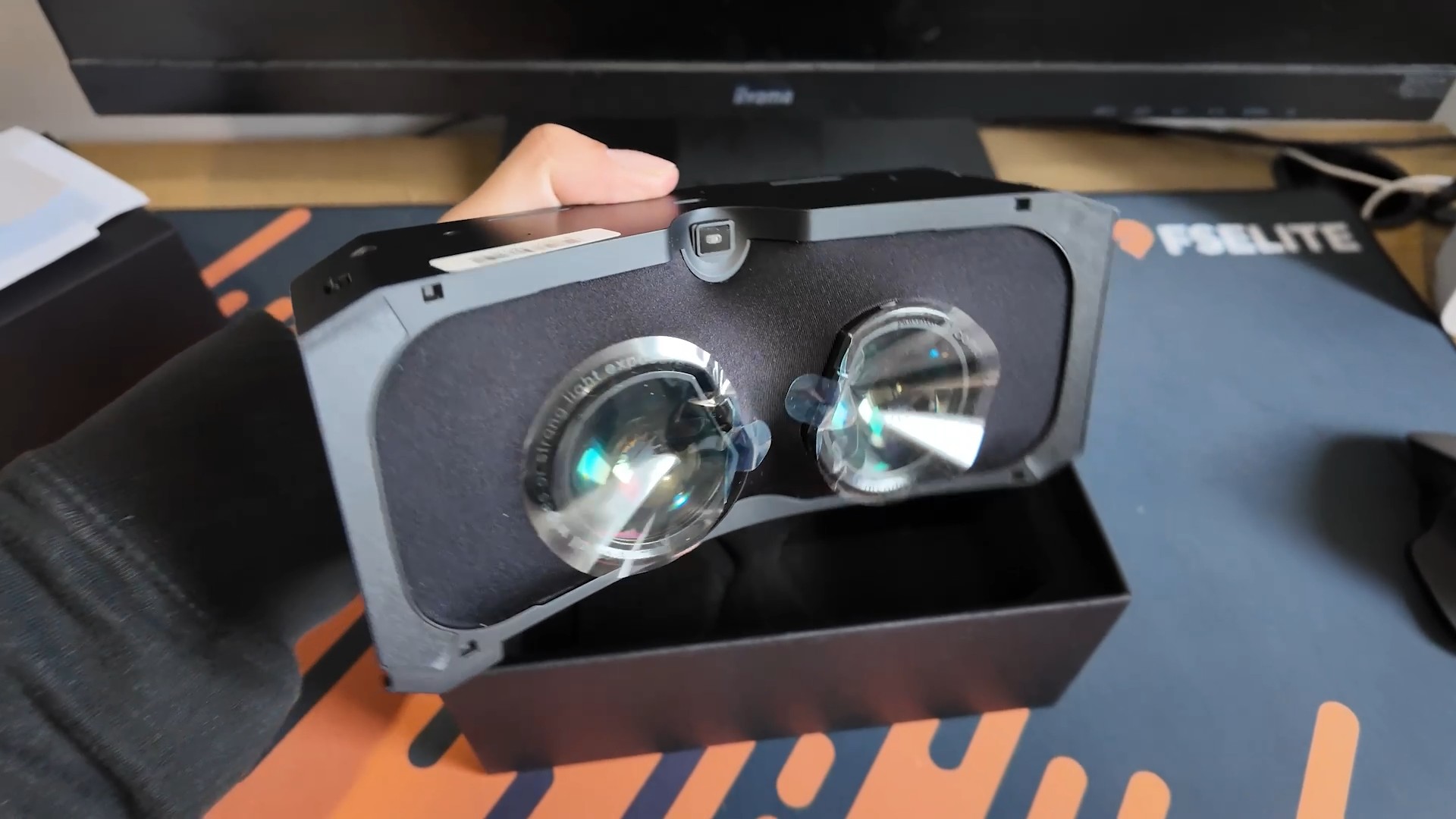

Another impressive element of this module were the pancake lenses. Now, before this review, I had no idea what that meant. It is often used in marketing materials, but with no real context. Let me try to explain.
Traditional Fresnel lenses rely on concentric rings to bend light, which can introduce glare, God rays, and a limited sweet spot where the image is truly sharp. Pancake optics, by contrast, use folded optical paths with multiple reflections. This allows light to be redirected more efficiently while keeping the physical lens thinner. This results in multiple wins. First, the headset can be slimmer and better balanced, reducing front-heavy weight. Second, and more importantly, image clarity is overall more consistent. Both of these things are real benefits over the previous Pimax headsets we have tested before.
This means you can glance sideways at instruments, look up at the overhead panel, or scan the horizon without the image falling apart at the edges. For flight simulation, where constant head and eye movement is the norm, this consistency is invaluable. Once the headset is adjusted, it largely stays adjusted, which reduced my fatigue and frustration during longer sessions.
The Crystal Super MicroOLED displays are a pretty fast 90Hz. For us simmers, this is a sensible and effective choice as it balances a capable display of motion clarity without being overkill (you’re never going to achieve a frame rate high enough to justify more Hz). More importantly, it helps reduce motion sickness, which is something I used to struggle with on previous models. During testing, the display felt smooth and comfortable, even during aggressive manoeuvres or rapid head movements. There was no noticeable flicker, and the OLED panel’s fast response times helped maintain clarity during motion.
Another area that impressed me was how the Micro-OLED module is lighter than previous Crystal configurations. The headset feels better balanced, with less pressure on the face and neck. When flying, this allowed for up to an hour of flying in smaller aircraft, and shorter, focused sessions of 15–20 minutes in large airliners, which is often dictated more by workload than physical comfort.
Finally, the Integrated audio continues to be a strong point for me and something I recalled from my previous experience with Pimax headsets. The built-in speakers deliver clear, spatial sound with enough depth to handle engine noise, environmental effects, and ATC without the need for external headphones. For VR, where simplicity matters, this is a genuine quality-of-life improvement.
Flying Becomes an Experience
In the Fenix A320 and PMDG 737, I found the displays to be razor sharp. Text is readable at a glance, symbology is clean, and the sense of sitting inside a real cockpit is still extremely convincing. The improved contrast and clarity make it easier to work without relying on zoom or head movement tricks. Looking up at the overhead panel or scanning across the cockpit feels natural, and the headset displays respond quickly and accurately.
Where most will struggle is going to be with performance, as it remains the limiting factor. The simulator is already under significant load, particularly at large airports or during dense weather, but throw in 8k worth of rendering, there is some sacrifice to be made. DLSS and frame generation help maintain smoothness, but this is not a headset you can simply plug in and forget about. You do have to be responsible to tone down settings, especially in airliners. That said, I primarily used the headset during taxi, take-off, and landing, then switched back to a traditional display for more interaction-heavy tasks like FMS programming and during cruise.
A visual approach into Innsbruck’s notoriously challenging airport was a standout moment. Descending through the valley, with mountains towering on either side and terrain rushing past beneath the aircraft, was genuinely breathtaking. Even with toned-down settings, the visual experience was still highly immersive.
My experience with smaller aircraft was even better thanks to the lower performance demands. This meant higher scenery detail and overall smoother frame rates, particularly near the ground. Flying the Cessna 152 felt relaxed and immersive, making it easy to lose track of time while sightseeing.
VFR flying benefits enormously from the headset’s clarity. Landmarks stand out, photogrammetry feels more convincing, and judging height and distance becomes far more instinctive. I spent time flying over London and Bristol, as well as New York and Los Angeles (with the latest city update), and the experience was consistently impressive. Photogrammetry artefacts still exist, but the depth and scale provided by VR make them easier to overlook.
This is also where comfort matters most. Casual VFR flying encourages longer sessions, and the lighter weight of the OLED module makes those sessions genuinely enjoyable. For these flights, I often used an Xbox controller as I was already so immersed in the visuals that I had no need or desire to use more tactile controls.
Big Demands and Big Cost
There is no escaping the performance demands of the Crystal Super MicroOLED. Rendering nearly 4K per eye, twice, is an enormous task. Even with an RTX 4090, careful tuning is essential. I found that DLSS was essentially in making this a feasible task. But even the 4090 is an expensive card, with the 5090 being even more so – this isn’t for a weak wallet.
“Eye-tracked Dynamic Foveated Rendering” plays a crucial role as well. By rendering the area you are actively looking at in higher resolution and reducing detail in peripheral vision, the system allocates GPU resources where they matter most. In practice, this means sharper instrument panels and clearer external views without unnecessary performance loss. It’s an extremely clever use of technology, and you do feel the benefits.
I hope by now, it is clear that the Pimax Crystal Super MicroOLED is not a headset for casual users. It is expensive, demanding, and requires careful tuning. However, for flight simmers who already understand VR’s limitations and want to push past them, it represents one of the most compelling options currently available. Display quality is exceptional, with Micro-OLED technology delivering contrast and clarity that fundamentally improve cockpit readability and visual immersion. Pancake optics provide a forgiving sweet spot and consistent clarity, while eye-tracked rendering helps manage performance intelligently.
The price remains high, at around $2,135 USD, but Pimax’s payment plans and trade-in options help soften the blow. Is it a compelling upgrade for those who already own a Pimax headset? Probably not, but for those who are looking for the very best in VR headsets, this is so far the best available on the market.
